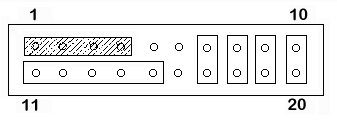

JP8

Speaker connectior: J8 (pins 1-4).

J8 Pin #	Description
1	Speaker Out
2	N.C.
3	Ground
4	+ 5V

Power LED and Keylock Connector: J8 (pins 11-15).

J8 Pin #	Description
11	Power LED
12	N.C.
13	Ground
14	Keylock
15	Ground

Turbo Switch Connector: J8 (pins 7-17).

When pins 7 and 17 are shorted, the system will be running at full (Trubo) speed.

Turbo LED Connector: J8 (pins 8-18).

When the LOD is on, the system is running at full (Turbo) speed.

Reset Switch Connector: J8 (pins 9-19).

To reset the system, short pins 9 and 19.

Hard Disk LED Connector: J8 (pins 10-20), J7.
