The SIS 486 ISA Motherboard

This is not *the* SiS 486 mothreboard, but rather a (no name) motherboard with the SiS 85C40? chipset with the folllowing markings :

4492
CADAC CMVO-1
Rev. C

ISA-486DX/DX2
SIS 85C401 / SIS 85C402
AMI Bios
Slots : 16 bit x 6, 8 bit x 1, 32 bit x 1
8 x 30 pin SIMM
SIS chipset (85C401 & 85C402)
CPU Clock : 16/20/25/33/40/50 MHz
DRAM type : 256K/512K/1M/2M/4Mxn DRAM

I have the manual for this M/B. It's 90 pages long, and I only have a hardcopy.

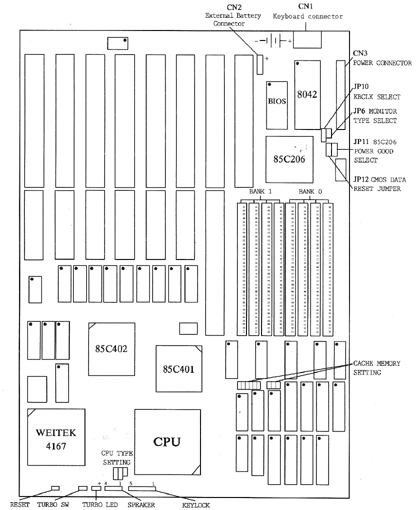

List of jumpers.
